Large Cap Grinder

Large Cap Grinder

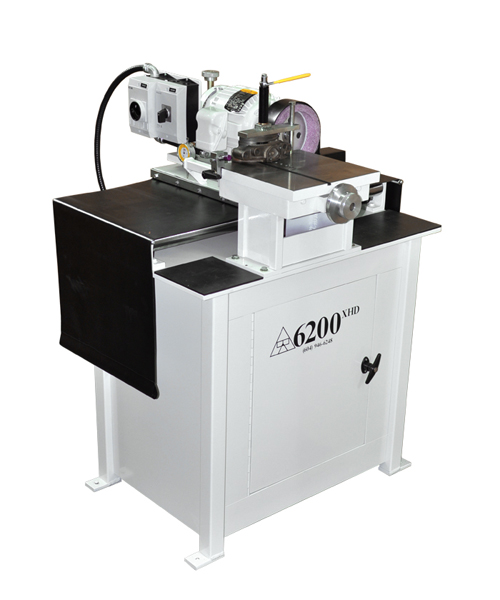

Model: Delta 6200 XHD
Extra Heavy Duty Cap and Rod Grinder

The Delta 6200 XHD is the perfect machine for those individuals who require a high precision grinder. The machine produces a flat mating surface and is quickly adjustable to the original mating surfaces.

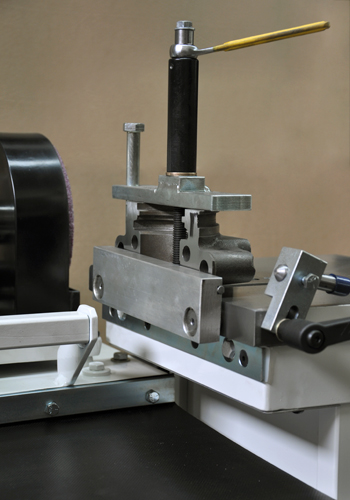

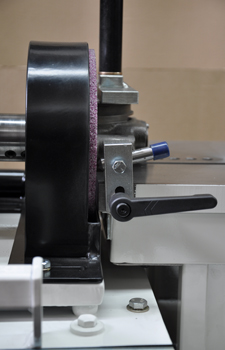

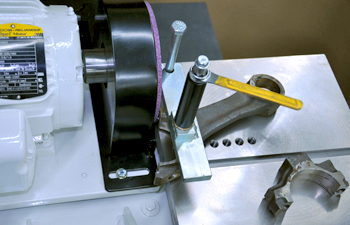

The setup is very quick. Place the magnetmagnetic straight edge on the table face, then place clampcap or rod against surface and tighten down. The stone can be dressed before and / or during the grinding operation as required. The Diamond Dresserdiamond dresser is mounted on the side of the actual work table. This same operation can be used on overhead Cam caps.

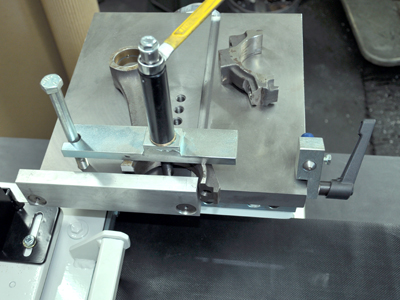

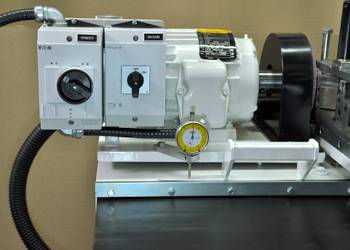

Side ViewThis grinder will do caps measuring up to 4" in height and up to 17" in length. The work Tabletable is 12" square. Readily grinds ends of caps after welding for better fit in block. Stone angle adjusts in seconds for quick set-up. No shimming is required.

Grinds 12-V-149 DDA, 398 CAT, 12 & 16 KV Cummins in less than five minutes.
Operates dust free with built-in vacuum system.
